Edsel 85SE

Edsel 85SE ; Stromberg-Carlson Co (ID = 818186) Car Radio

Edsel 85SE ; Stromberg-Carlson Co (ID = 818187) Car Radio

Edsel 85SE ; Stromberg-Carlson Co (ID = 818188) Car Radio

Edsel 85SE ; Stromberg-Carlson Co (ID = 818189) Car Radio

Edsel 85SE ; Stromberg-Carlson Co (ID = 818190) Car Radio

Edsel 85SE ; Stromberg-Carlson Co (ID = 818191) Car Radio

Edsel 85SE ; Stromberg-Carlson Co (ID = 818192) Car Radio

Edsel 85SE ; Stromberg-Carlson Co (ID = 818193) Car Radio
Edsel 85SE ; Stromberg-Carlson Co (ID = 818185) Car Radio Edsel 85SE ; Stromberg-Carlson Co (ID = 821938) Car Radio
Edsel 85SE ; Stromberg-Carlson Co (ID = 821933) Car Radio Edsel 85SE ; Stromberg-Carlson Co (ID = 821934) Car Radio
Edsel 85SE ; Stromberg-Carlson Co (ID = 821935) Car Radio Edsel 85SE ; Stromberg-Carlson Co (ID = 821936) Car Radio
Edsel 85SE ; Stromberg-Carlson Co (ID = 821937) Car Radio
Use red slider bar for more.
Edsel 85SE ; Stromberg-Carlson Co (ID = 818185) Car Radio

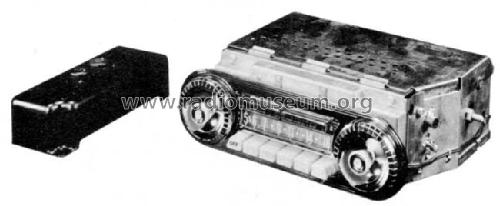

Stromberg-Carlson Co: Edsel 85SE [Car Radio] ID = 818185 650x269
Select picture or schematic to display from thumbnails on the right and click for download.
For model Edsel 85SE, Stromberg-Carlson Co. ; Rochester (NY):
Sams Photofact Folders reference picture.

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1958 ? Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: 12AD6 12AD6 12AF6 12EL6 12K5
Semiconductors (the count is only for transistors) 2: 2N155 2N155
Main principle Superhet with RF-stage; ZF/IF 262.5 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Edsel 85SE - Stromberg-Carlson Co. ;
Material Metal case
Shape Chassis only or for «building in»
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 6-58, Set 402, Folder 8)

Model page created by Egon Penker. See "Data change" for further contributors.



All listed radios etc. from Stromberg-Carlson Co. ; Rochester (NY)
Here you find 779 models, 473 with images and 653 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
