Empire 119CM Ch= 112107

• Country
• United States of America (USA)

• Manufacturer / Brand
• Stromberg-Carlson Co. ; Rochester (NY)

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 222532

• • Brand: Te-Lek-Tor-Et

• Picture

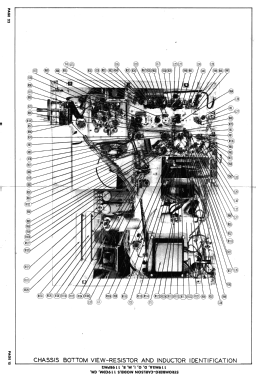

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 29

• Valves / Tubes
• 6BC5 6CB6 or 6BH6 6J6 6J6 6BA6 6BA6 6BA6 6CB6 6AL5 6AU6 6AR5 6AU6 6AU6 6AU6 6T8 6AQ5 6CB6 12AU7 6C4 12AU7 6AL5 6SN7GT 6BG6G 6W4GT 1X2A or 1X2 1X2A or 1X2 5U4G 5U4G 19AP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Empire 119CM Ch= 112107 - Stromberg-Carlson Co. ;

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 31 x 42 x 22 inch / 787 x 1067 x 559 mm

• Notes

• Stromberg-Carlson model 119CM is a 19” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 112107, a VHF tuner and picture tube 19AP4.



• Net weight (2.2 lb = 1 kg)
• 120 lb (120 lb 0 oz) / 54.480 kg

• Mentioned in
• Photofact Folder, Howard W. SAMS (Set 130, folder 14, dated 4-51)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 146, Photocaft servicer vol. no.15, nos. 145 & 146)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
