Stereo 60 Amplifier ASR-444

Stereo 60 Amplifier ASR-444; Stromberg-Carlson Co (ID = 2484986) Ampl/Mixer

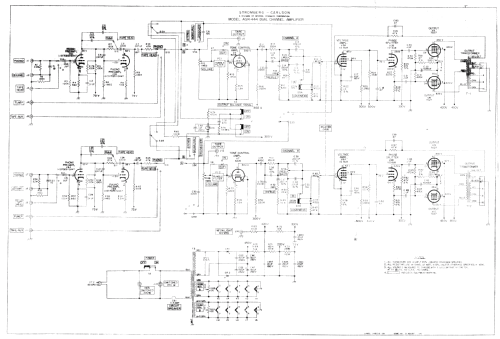

Stereo 60 Amplifier ASR-444; Stromberg-Carlson Co (ID = 2484989) Ampl/Mixer
Stereo 60 Amplifier ASR-444; Stromberg-Carlson Co (ID = 2578942) Ampl/Mixer Stereo 60 Amplifier ASR-444; Stromberg-Carlson Co (ID = 2484983) Ampl/Mixer
Stereo 60 Amplifier ASR-444; Stromberg-Carlson Co (ID = 2484985) Ampl/Mixer Stereo 60 Amplifier ASR-444; Stromberg-Carlson Co (ID = 2484984) Ampl/Mixer
Use red slider bar for more.
Stereo 60 Amplifier ASR-444; Stromberg-Carlson Co (ID = 2578942) Ampl/Mixer
Stromberg-Carlson Co: Stereo 60 Amplifier ASR-444 [Ampl/Mixer] ID = 2578942 1024x371
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo 60 Amplifier ASR-444, Stromberg-Carlson Co. ; Rochester (NY):
From my collection

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1960 ? Category: Audio Amplifier or -mixer
Valves / Tubes 8: 12AX7 12AX7 6U8 6U8 7027 7027 7027 7027
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (undistorted)
from Radiomuseum.org Model: Stereo 60 Amplifier ASR-444 - Stromberg-Carlson Co. ;
Material Metal case, TUBES VISIBLE
Shape Chassis only or for «building in»
Notes

6L6GC tubes can be substituted for 7027 in this unit.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 487, Folder 14)

Model page created by Thomas Bavis. See "Data change" for further contributors.
