• Country
• United States of America (USA)

• Manufacturer / Brand
• Stromberg-Carlson Co. ; Rochester (NY)

• Year
• 1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62225

• • Brand: Te-Lek-Tor-Et

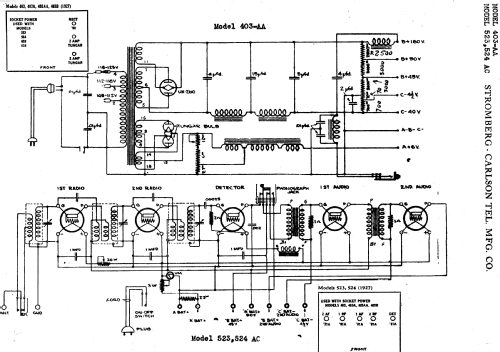

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• UX201A UX201A UX201A UX201A UX171A 80 277465 277465

• Main principle
• TRF without regeneration; Neutrodyne

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• from Radiomuseum.org
• Model: T 524 AC - Stromberg-Carlson Co. ;

• Shape
• Tablemodel, with any shape - general.

• Notes
• Uses socket power unit 403 (versions).
  Two dials (primary tuning control knobs)

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965
