TV-125 - TV-125S-H2H Ch= TV-12 (TS10)

• Country
• United States of America (USA)

• Manufacturer / Brand
• Stromberg-Carlson Co. ; Rochester (NY)

• Year
• 1949 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 222528

• • Brand: Te-Lek-Tor-Et

• Picture

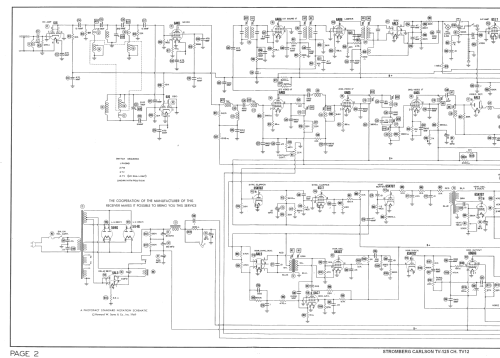

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: TV-125 - TV-125S-H2H Ch= TV-12 - Stromberg-Carlson Co. ;

• Shape
• Tablemodel, low profile (big size).

• Notes

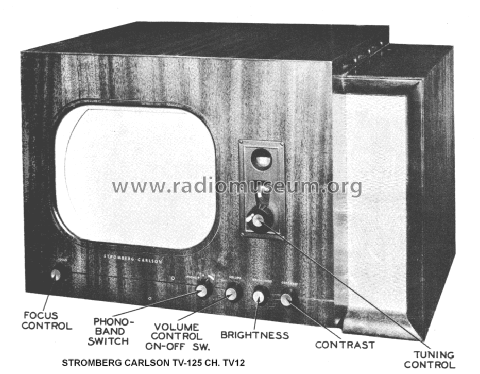

• Stromberg-Carlson TV-125 - TV-125S-H2H, Chassis TV-12; b/w TV with US FCC standard VHF tuner.

  Chassis is marked TS-10.

• Mentioned in

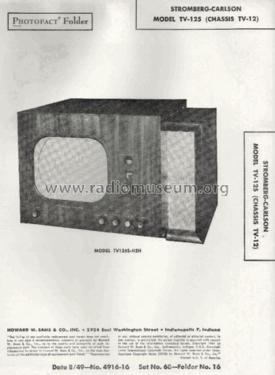

• Photofact Folder, Howard W. SAMS (8/49 - No-4916-16 - Set No. 68 - Folder No.16)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
