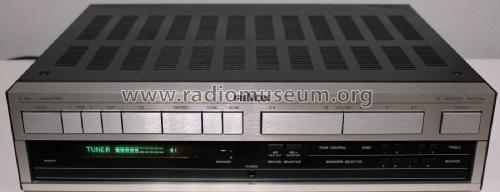

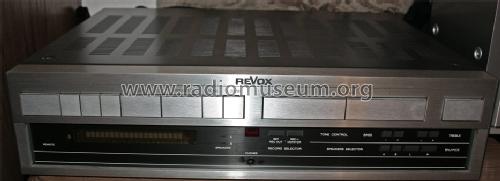

Stereo Integrated Amplifier B-150

Studer-Revox; Schweiz

  • Year
  • 1988
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 176916

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 260 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Integrated Amplifier B-150 - Studer-Revox; Schweiz
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 450 x 109 x 332 mm / 17.7 x 4.3 x 13.1 inch
  • Notes

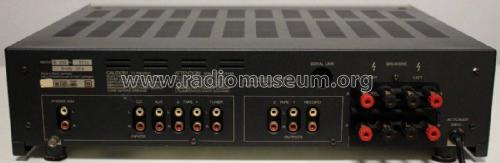

  • Audio Ein- und Ausgänge: Phono, CD, AUX, Tape 1+2, Tuner, Speakers A + B, Phones (Anschlussbuchse für Kopfhörer). 2 x 130 Watt Sinusleistung (4 Ohm), 2 x 90 Watt Sinusleistung (8 Ohm),
    2 x 250 Watt Musikleistung (4 Ohm), 2 x 130 Watt Musikleistung (8 Ohm),
  • Net weight (2.2 lb = 1 kg)
  • 12 kg / 26 lb 6.9 oz (26.432 lb)
  • Source of data
  • - - Data from my own collection
  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by Achim Eisenhuth. See "Data change" for further contributors.
