Externe Tonmotorsteuerung

Externe Tonmotorsteuerung ; Studer-Revox; (ID = 139573) Misc Externe Tonmotorsteuerung ; Studer-Revox; (ID = 139574) Misc
Externe Tonmotorsteuerung ; Studer-Revox; (ID = 139575) Misc
Use red slider bar for more.

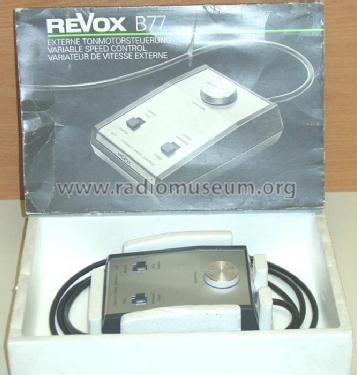

Externe Tonmotorsteuerung ; Studer-Revox; (ID = 139573) Misc
Studer-Revox;: Externe Tonmotorsteuerung [Misc] ID = 139573 667x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Externe Tonmotorsteuerung, Studer-Revox; Schweiz

Country:  Switzerland
Manufacturer / Brand:  Studer-Revox; Schweiz
Year: 1975 ?? Category: Miscellaneous (Other, Various) - see notes
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Externe Tonmotorsteuerung - Studer-Revox; Schweiz
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 96 x 42 x 135 mm / 3.8 x 1.7 x 5.3 inch
Notes Externe Tonmotorsteuerung für die Tonbandmaschiene B77. Jede Bandgeschwindigkeit zwischen 6,5 cm/s und 28 cm/s ist realisierbar.
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Source of data - - Data from my own collection / Radiokatalog Band 2, Ernst Erb

Model page created by Peter Böhm. See "Data change" for further contributors.
