FM Tuner A764

FM Tuner A764; Studer GmbH, Willi (ID = 2103826) Radio FM Tuner A764; Studer GmbH, Willi (ID = 2103827) Radio
FM Tuner A764; Studer GmbH, Willi (ID = 2103828) Radio FM Tuner A764; Studer GmbH, Willi (ID = 2103829) Radio
FM Tuner A764; Studer GmbH, Willi (ID = 2103831) Radio FM Tuner A764; Studer GmbH, Willi (ID = 2103832) Radio
FM Tuner A764; Studer GmbH, Willi (ID = 2057413) Radio FM Tuner A764; Studer GmbH, Willi (ID = 2057415) Radio
FM Tuner A764; Studer GmbH, Willi (ID = 1275524) Radio FM Tuner A764; Studer GmbH, Willi (ID = 1275525) Radio
Use red slider bar for more.
FM Tuner A764; Studer GmbH, Willi (ID = 2103826) Radio
Studer GmbH, Willi: FM Tuner A764 [Radio] ID = 2103826 1360x477
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM Tuner A764, Studer GmbH, Willi (ReVox); Löffingen:
Version-3 Nr60.087.64003

Country:  Germany
Manufacturer / Brand:  Studer GmbH, Willi (ReVox); Löffingen
Brand

ReVox (brand)
Year: 1989 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.

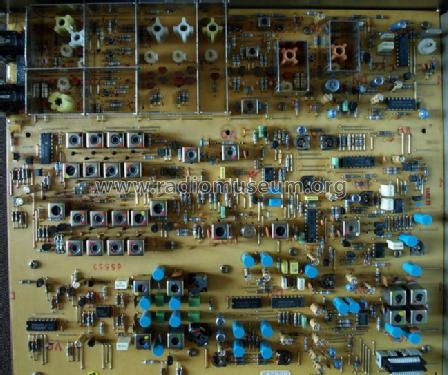

Main principle Superhet with RF-stage; ZF/IF 10700 kHz
Tuned circuits 25 FM circuit(s)
Wave bands FM Broadcast Band Only
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110 - 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: FM Tuner A764 - Studer GmbH, Willi ReVox;
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 445 x 335 x 105 mm / 17.5 x 13.2 x 4.1 inch
Notes Studer A764 PLL Synthesiser Tuner.
RDS und ARI Decoder eingebaut.
Überwachung der Sendeparameter, Frequenzhub und Signalstärke (je mit einstellbaren Schwellen) sowie der Modulationswächter bei Programmausfall.
Zusätzlich wurden die Analogsignale Frequenzhub und Signalstärke auch zur Anzeige auf externen Messinstrumenten herausgeführt.
Professionelle Ausführung des Revox FM-Tuners B260.
Source of data - - Manufacturers Literature

Model page created by Horst Bressel. See "Data change" for further contributors.
