• Country
• Germany

• Manufacturer / Brand
• Studer GmbH, Willi (ReVox); Löffingen

• Year
• 1976–1981

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 74929

• • Brand: ReVox (brand)

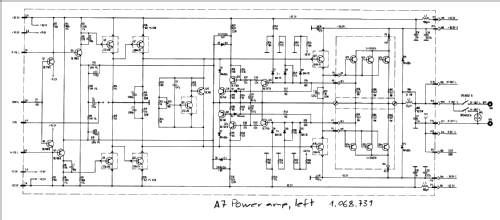

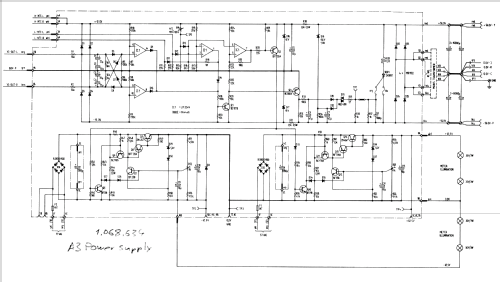

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Revox A740 - Studer GmbH, Willi ReVox;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 450 x 151 x 357 mm / 17.7 x 5.9 x 14.1 inch

• Notes
• Stereo-Hochleistungsendstufe, 2 x 200 Watt sinus, Spitzenwertleistungsmesser.

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Price in first year of sale
• 2,890.00 SFr

• External source of data
• HiFi-Jahrbuch 10 ( Verlag G. Braun)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Lars Brötje. See "Data change" for further contributors.
