Revox A77 Mk I CS Tischgerät ohne Endstufen

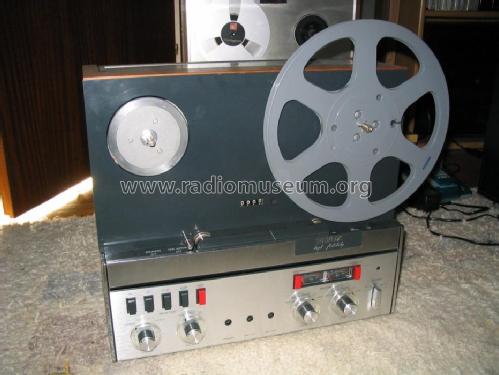

Revox A77 Mk I CS; Studer GmbH, Willi (ID = 1831919) R-Player Revox A77 Mk I CS; Studer GmbH, Willi (ID = 46796) R-Player
Revox A77 Mk I CS; Studer GmbH, Willi (ID = 46797) R-Player Revox A77 Mk I CS; Studer GmbH, Willi (ID = 46798) R-Player
Revox A77 Mk I CS; Studer GmbH, Willi (ID = 464031) R-Player Revox A77 Mk I CS; Studer GmbH, Willi (ID = 1909703) R-Player

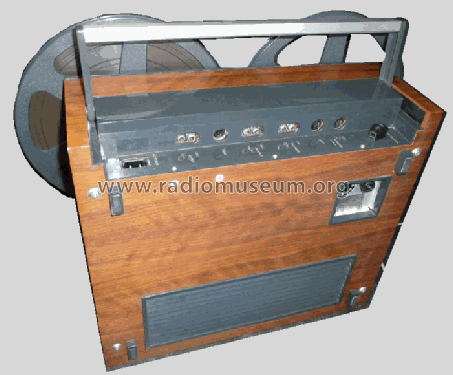

Revox A77 Mk I CS; Studer GmbH, Willi (ID = 1909704) R-Player Revox A77 Mk I CS; Studer GmbH, Willi (ID = 1909705) R-Player
Use red slider bar for more.

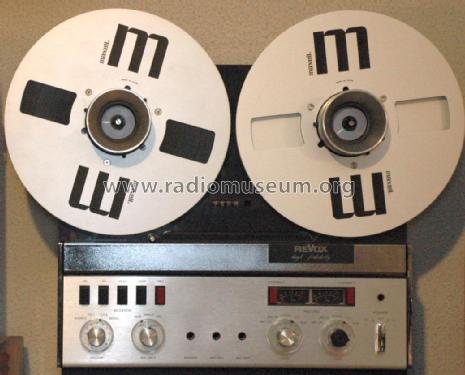

Revox A77 Mk I CS; Studer GmbH, Willi (ID = 1831919) R-Player
Studer GmbH, Willi: Revox A77 Mk I CS [R-Player] ID = 1831919 1040x837
Select picture or schematic to display from thumbnails on the right and click for download.
For model Revox A77 Mk I CS Tischgerät ohne Endstufen, Studer GmbH, Willi (ReVox); Löffingen

Country:  Germany
Manufacturer / Brand:  Studer GmbH, Willi (ReVox); Löffingen
Brand

ReVox (brand)
Year: 1967–1969 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 54:
schematic requested
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Revox A77 Mk I CS [Tischgerät ohne Endstufen] - Studer GmbH, Willi ReVox;
Material Wooden case
Dimensions (WHD) 410 x 205 x 400 mm / 16.1 x 8.1 x 15.7 inch
Notes Stereo Tonbandgerät, 3 Motore, 3 Köpfe. Als 2-Spur- oder 4-Spur-Gerät mit den Bandgeschwindigkeiten 9,5/19 cm/s gefertigt. Elektrisch und optisch keine Unterschiede. Endstufen nachrüstbar.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 1'631.00 DM
External source of data erb
Source of data Handbuch VDRG 1967/1968 / Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Studer GmbH, Willi (ReVox); Löffingen
Here you find 81 models, 59 with images and 26 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
