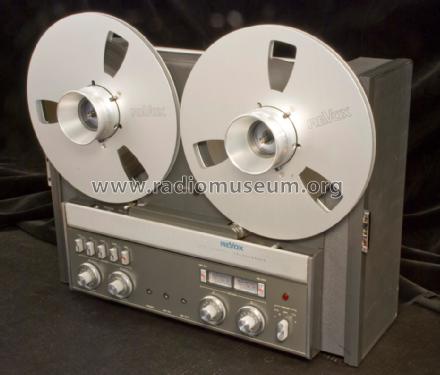

Revox A 77 Mk IV K Koffergerät mit Endstufen

Revox A 77 Mk IV K; Studer GmbH, Willi (ID = 1364379) R-Player
Use red slider bar for more.
Revox A 77 Mk IV K; Studer GmbH, Willi (ID = 1364379) R-Player
Studer GmbH, Willi: Revox A 77 Mk IV K [R-Player] ID = 1364379 933x794
Select picture or schematic to display from thumbnails on the right and click for download.
For model Revox A 77 Mk IV K Koffergerät mit Endstufen, Studer GmbH, Willi (ReVox); Löffingen

Country:  Germany
Manufacturer / Brand:  Studer GmbH, Willi (ReVox); Löffingen
Brand

ReVox (brand)
Year: 1974–1977 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 54:
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 220; 240; 250 Volt
Loudspeaker 4 Loudspeakers
Power out 16 W (unknown quality)
from Radiomuseum.org Model: Revox A 77 Mk IV K [Koffergerät mit Endstufen] - Studer GmbH, Willi ReVox;
Material Leather / canvas / plastic - over other material
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 514 x 380 x 224 mm / 20.2 x 15 x 8.8 inch
Notes Stereo-Tonbandgerät, 3 Motore, 3 Köpfe. Als 2-Spur- oder 4-Spur-Gerät mit den Bandgeschwindigkeiten 9,5/19 cm/s gefertigt. Elektrisch und optisch keine Unterschiede. Stereo-NF-Verstärker mit 2 Endstufen je 8 W.
Net weight (2.2 lb = 1 kg) 19 kg / 41 lb 13.6 oz (41.85 lb)
Price in first year of sale 2'000.00 sFr.
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Herbert Odermatt † 26.Nov.05. See "Data change" for further contributors.
