Revox B791

Revox B791; Studer GmbH, Willi (ID = 337534) R-Player Revox B791; Studer GmbH, Willi (ID = 2245540) R-Player
Revox B791; Studer GmbH, Willi (ID = 2245541) R-Player Revox B791; Studer GmbH, Willi (ID = 2245542) R-Player
Revox B791; Studer GmbH, Willi (ID = 2245543) R-Player Revox B791; Studer GmbH, Willi (ID = 2245544) R-Player
Use red slider bar for more.

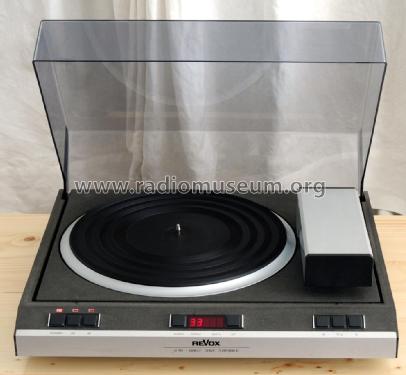

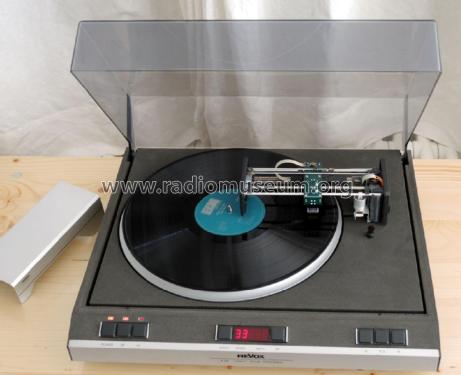

Revox B791; Studer GmbH, Willi (ID = 337534) R-Player
Studer GmbH, Willi: Revox B791 [R-Player] ID = 337534 821x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Revox B791, Studer GmbH, Willi (ReVox); Löffingen

Country:  Germany
Manufacturer / Brand:  Studer GmbH, Willi (ReVox); Löffingen
Brand

ReVox (brand)
Year: 1982–1985 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 26:
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 100-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Revox B791 - Studer GmbH, Willi ReVox;
Material Various materials
Shape Book-shelf unit.
Dimensions (WHD) 449 x 142 x 395 mm / 17.7 x 5.6 x 15.6 inch

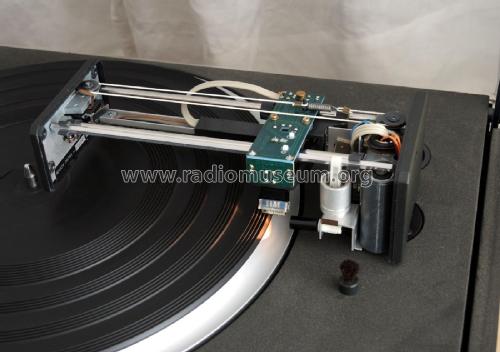

Notes Stereo-HiFi-Plattenspieler, Direktantrieb, Tangentialtonarm. Preis von 1982 (mit Tonabnehmer Shure V15 V). 2 Geschwindigkeiten (33 und 45 Upm). Plattenteller 313mm, 2,1 kg. Originaltonabnehmersystem: Shure Tracer TXE-SR. Bestückung: 26 Transistoren, 31 IC's, 45 Dioden, 4 LED's, 5x7-Segment-Anzeigen, 2 Brückengleichrichter.
Net weight (2.2 lb = 1 kg) 9.1 kg / 20 lb 0.7 oz (20.044 lb)
Price in first year of sale 1'555.00 SFr
External source of data P. Holenstein
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert (Revox Kataloge, Revox Preislisten)

Model page created by Lars Brötje. See "Data change" for further contributors.
