• Country
• Germany

• Manufacturer / Brand
• Studiotechnik Berlin, VEB (Ostd.)

• Year
• 1972

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 103950

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• F2,5M5a

• Number of Transistors
• 30

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

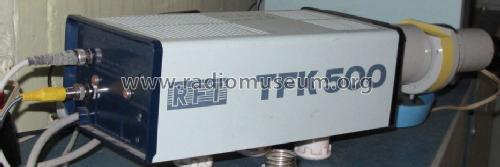

• Model: TFK-500 - Studiotechnik Berlin, VEB Ostd

• Dimensions (WHD)
• 295 x 140 x 96 mm / 11.6 x 5.5 x 3.8 inch

• Notes
• S/W-Fernsehkamera; Signalübertragung über Kabel; Fernbedienungszusatz: FZ20.20. Ausgangssignal HF Uss = 30mV , auf Kanal 3 oder 4 nach CCIR-Norm

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
