V37

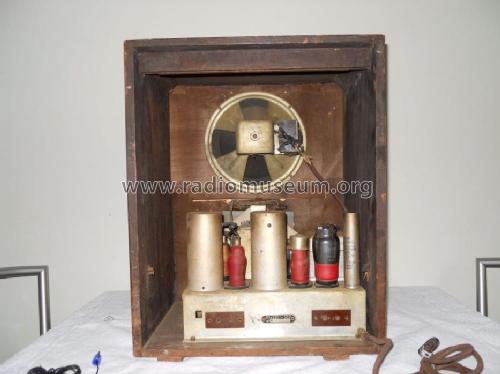

V37; SU-GA Suga; Paris, (ID = 718297) Radio V37; SU-GA Suga; Paris, (ID = 718298) Radio
V37; SU-GA Suga; Paris, (ID = 718299) Radio
Use red slider bar for more.
V37; SU-GA Suga; Paris, (ID = 718297) Radio
SU-GA Suga; Paris,: V37 [Radio] ID = 718297 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model V37, SU-GA (Suga); Paris, Asniéres

Country:  France
Manufacturer / Brand:  SU-GA (Suga); Paris, Asniéres
Year: 1937 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EK2 EF5 EBC3 EL3 EZ3
schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: V37 - SU-GA Suga; Paris, Asniéres
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 370 x 470 x 250 mm / 14.6 x 18.5 x 9.8 inch
Notes

Rédresseur probablement EZ3, peut-être 1883.

Model page created by Gianni Volponi. See "Data change" for further contributors.
