For model NAG, Suchestow & Co.; Wien:

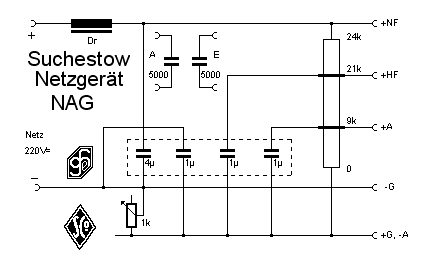

Suchestow Gleichstrom-Netzanode NAG

Country:  Austria
Manufacturer / Brand:  Suchestow & Co.; Wien
Year: 1930 Category: Service- or Lab Equipment
Wave bands - without
Details Power Supply (not only Batt.El.)
Power type and voltage Direct Current supply (DC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: NAG - Suchestow & Co.; Wien
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 175 x 135 x 125 mm / 6.9 x 5.3 x 4.9 inch
Notes 3 fix einstellbare Anodenspannungen von 20 bis 200 Volt. Eine kontinuierlich variable Gittervorspannung von 0 bis 20 Volt, 60 mA Stromentnahme.
Price in first year of sale 78.00 ATS
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Gerhard Heigl. See "Data change" for further contributors.



All listed radios etc. from Suchestow & Co.; Wien
Here you find 22 models, 18 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
