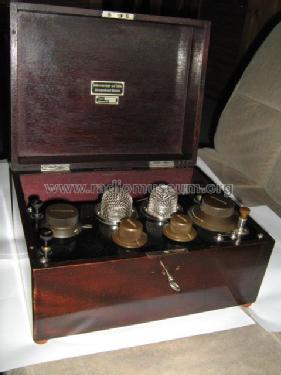

SRT-Zweiröhren-Empfänger Nr.54, REN 1102

Süddeutsche Radio- und Telefon AG; München

  • Year
  • 1924/1925
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 159519
    • Brand: SRT

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • TRF with regeneration; 1 AF stage(s)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: SRT-Zweiröhren-Empfänger Nr.54, REN 1102 - Süddeutsche Radio- und Telefon
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 280 x 210 x 150 mm / 11 x 8.3 x 5.9 inch
  • Notes
  • Trockenbatterien eingebaut. Sparröhren. Batteriefach rechts aufklappbar.

  • Net weight (2.2 lb = 1 kg)
  • 2.6 kg / 5 lb 11.6 oz (5.727 lb)
  • Price in first year of sale
  • 197.00 RM
  • Mentioned in
  • Katalog der Osthandel GmbH, Breslau V
  • Literature/Schematics (1)
  • Abele: Radiohersteller; Inserat Nov.1924 Bayer.Radiozeitung
