Powerstat Var. Autotransformer N21

Powerstat Var. Autotransformer N21; Superior Electric Co (ID = 2099223) Equipment
Use red slider bar for more.
Powerstat Var. Autotransformer N21; Superior Electric Co (ID = 2099223) Equipment

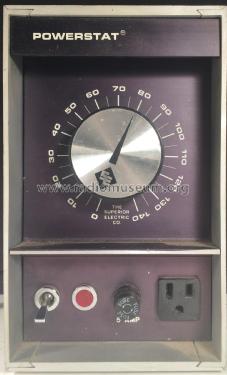

Superior Electric Co: Powerstat Var. Autotransformer N21 [Equipment] ID = 2099223 1274x2100
Select picture or schematic to display from thumbnails on the right and click for download.
For model Powerstat Var. Autotransformer N21, Superior Electric Co, The; Bristol, Conn.

Country:  United States of America (USA)
Manufacturer / Brand:  Superior Electric Co, The; Bristol, Conn.
Year: 1970 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Powerstat Var. Autotransformer N21 - Superior Electric Co, The;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 127 x 213 x 142 mm / 5 x 8.4 x 5.6 inch
Notes

Output is 0 - 140 Volts AC, 0.63 KVA.

Ratings are similar to the Superior 21 Series open construction variable transformers.

The N21 Model features enclosed construction for service bench use.

Net weight (2.2 lb = 1 kg) 8 lb 14 oz (8.875 lb) / 4.029 kg

Model page created by Jack Sorensen. See "Data change" for further contributors.
