Cardioid Condenser Stop/Start Microphone EC-3S

Cardioid Condenser Stop/Start Microphone EC-3S; Superscope, Geneva (ID = 1890860) Microphone/PU Cardioid Condenser Stop/Start Microphone EC-3S; Superscope, Geneva (ID = 1890861) Microphone/PU

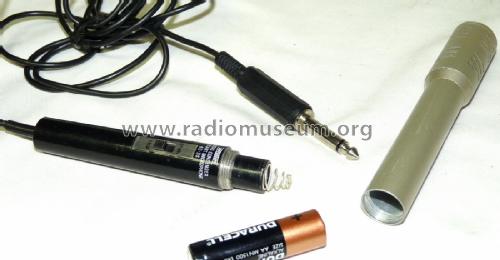

Cardioid Condenser Stop/Start Microphone EC-3S; Superscope, Geneva (ID = 1890862) Microphone/PU Cardioid Condenser Stop/Start Microphone EC-3S; Superscope, Geneva (ID = 1890863) Microphone/PU
Cardioid Condenser Stop/Start Microphone EC-3S; Superscope, Geneva (ID = 1890864) Microphone/PU
Use red slider bar for more.
Cardioid Condenser Stop/Start Microphone EC-3S; Superscope, Geneva (ID = 1890860) Microphone/PU
Superscope, Geneva: Cardioid Condenser Stop/Start Microphone EC-3S [Microphone/PU] ID = 1890860 1200x1306
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cardioid Condenser Stop/Start Microphone EC-3S, Superscope, Geneva IL

Country:  United States of America (USA)
Manufacturer / Brand:  Superscope, Geneva IL
alternative name

Superscope, Chatsworth
Year: 1990 ?? Category: Microphone or Pick-up element
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Dry Batteries / 1,5 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Cardioid Condenser Stop/Start Microphone EC-3S - Superscope, Geneva IL
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 22 x 210 x 22 mm / 0.9 x 8.3 x 0.9 inch
Notes

Mono Klinkenstecker 6,3 mm. Kabellänge 1,5 Meter.

Net weight (2.2 lb = 1 kg) 0.080 kg / 0 lb 2.8 oz (0.176 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
