• Country
• Zimbabwe

• Manufacturer / Brand
• Supersonic (Chassay Bros), Bulawayo, SR

• Year
• 1972 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 252112

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / D: 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

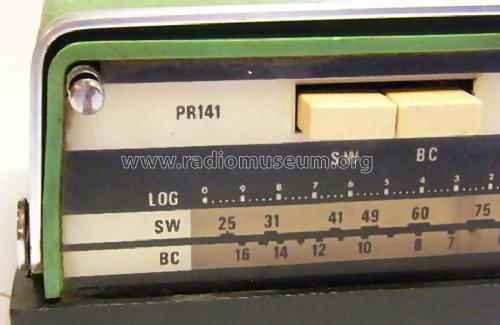

• Model: Champion PR141 - Supersonic Chassay Bros,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 200 x 160 x 60 mm / 7.9 x 6.3 x 2.4 inch

• Notes

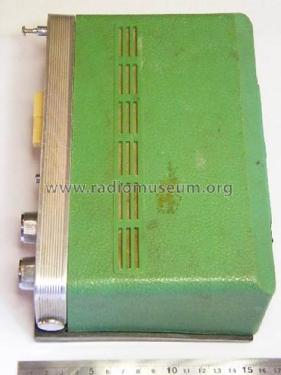

• Dimensions approximate from ruler across width and height only. Including knobs.
  External aerial switch and Telescopic aerial.




• Author
• Model page created by Michael Watterson. See "Data change" for further contributors.
