Sutron Voltmètre de poche

Sutra (Sutron) - voir aussi CASÉ; Paris

  • Year
  • 1929 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 235767

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Sutron Voltmètre de poche - Sutra Sutron - voir aussi CASÉ
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 55 x 55 x 20 mm / 2.2 x 2.2 x 0.8 inch
  • Notes

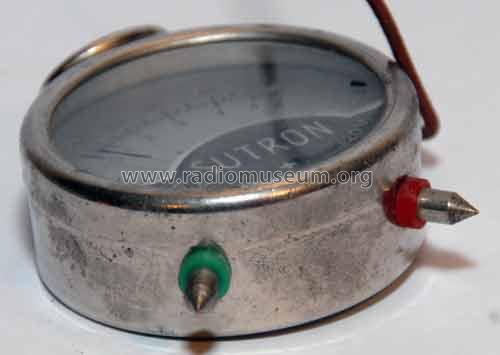

  • Pocketwatch-shaped voltmeter with two measuring ranges:

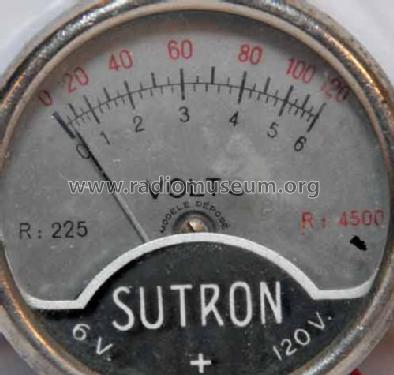

    Voltage: 0 - 6 V (Ri 225 Ohm) and 0 - 120 V (Ri 4500 Ohm).

    This model also exists with:

    Voltage: 0 - 6 V (Ri 160 Ohm) and 0 - 120 V (Ri 3200 Ohm).

  • Net weight (2.2 lb = 1 kg)
  • 0.810 kg / 1 lb 12.5 oz (1.784 lb)
  • Author
  • Model page created by Mark Hippenstiel. See "Data change" for further contributors.
