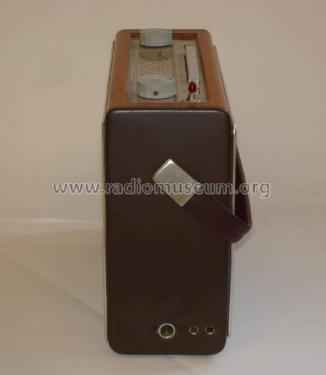

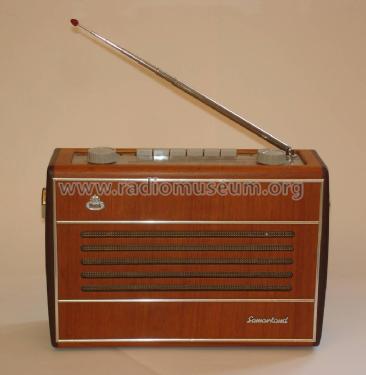

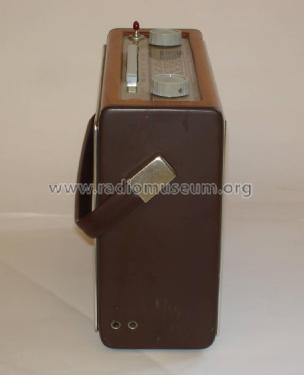

Monark Samarkand 232

Svenska Cykelfabriken, Varberg

  • Year
  • 1962
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 130827
    • alternative name: Tobo Bruk, Tobo

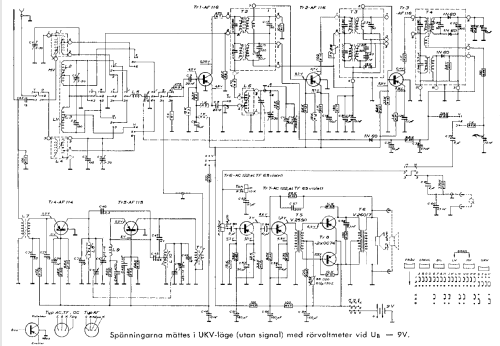

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.7 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Monark Samarkand 232 - Svenska Cykelfabriken, Varberg
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 290 x 195 x 95 mm / 11.4 x 7.7 x 3.7 inch
  • Notes
  • Wooden case likely to be plastic coated to withstand outdoor use. Transistors AC122 can be also TF65 violett
  • Net weight (2.2 lb = 1 kg)
  • 2.550 kg / 5 lb 9.9 oz (5.617 lb)
  • Source of data
  • -- Original prospect or advert
