• Country
• Sweden

• Manufacturer / Brand
• Svenska Högtalarefabriken (Sinus), HIFIac, HIFAB; Vårby, Bureå

• Year
• 1968

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 184686

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

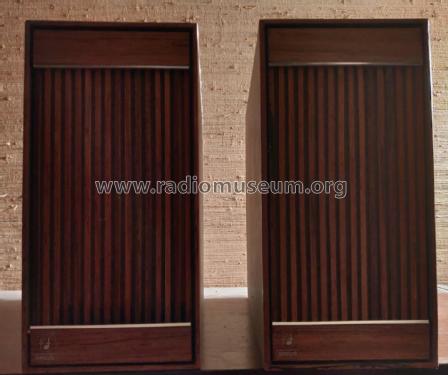

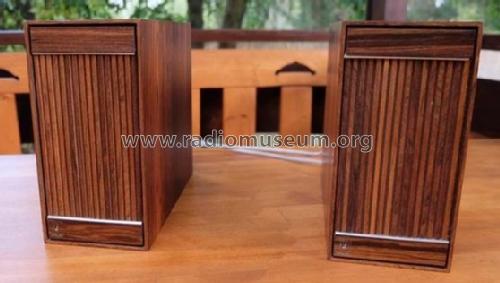

• Model: Sinus "1000-serie" högtalare 1003 - Svenska Högtalarefabriken

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 110 x 225 x 245 mm / 4.3 x 8.9 x 9.6 inch

• Notes

• Type: 1-way
  Maximum power: 15 W (1968)
  Impedance: 5 Ω
  Frequency range: 65 – 15 000 Hz (1968)
  Volume: 3.5 l (1968)
  Dimensions (WHD): 11x22.4x24.5 cm (1968)
  Weight: 2.3 kg (1968)
  Color (finish): teak, rosewood (jakaranda)

  Loudspeaker drivers

  • full-range: 1 x model - O-4799 ZK

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Source of data
• - - Manufacturers Literature

• Mentioned in
• -- Original prospect or advert (SWE: Radio och Television 1968 nr09 p6 and 1968 nr12 p63)
