• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Metal case

• from Radiomuseum.org
• Model: Sinus Högtalarelement U-8029 X - Svenska Högtalarefabriken

• Shape
• Chassis only or for «building in»

• Notes

• Earlier S-8029 X [Ultrasuper].

  Magnet

  • Type – Triconal (1967 May).
  • Magnetic induction (magnetic flux density), Gauss: 13 500 (1961, 1962, 1967 May).
  • Magnetic flux, Maxwell: 35 500 (1961, 1962, 1967 May).

  Voice coil

  • Maximum power, Watt: 4 [8] (1962), 8 (1964, 1965, 1966, 1967, 1968), 12 (1967 May, 1969, 1970).
  • Diameter, mm: 20 (1961, 1967 May).
  • Impedance, Ohm: 4, 8, 16.

  Diaphragm

  • Resonance frequency, Hz: 38±5 (1961, 1962), 38 (1964, 1967, 1967 May, 1968, 1969, 1970).
  • Frequency range, Hz: 30 – 16 000 (1961, 1962, 1964, 1967, 1967 May, 1968, 1969, 1970), …-16 000 (1965, 1966).

  Mechanical data

  • Distance between mounting holes, mm: 186 (1967 May).
  • Mounting hole diameter, mm: 175 (1965, 1966, 1967, 1967 May, 1968, 1969, 1970).
  • Dimensions of the magnetic system LxW, mm: 82x82 (1967 May).
  • Dimensions of the magnetic system D, mm: 66 (1967 May).
  • Basket depth, mm: 52 (1967 May).
  • Total depth, mm: 113 (1964), 118 (1965, 1966, 1967, 1967 May, 1968, 1969, 1970).
  • Weight, g: 1 165 (1967 May).

  Recommended speaker enclosure volume, l – 20.

• Mentioned in

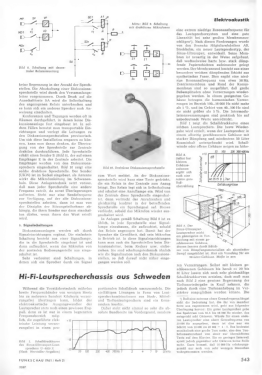

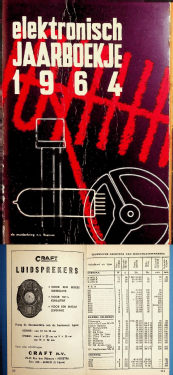

• -- Original prospect or advert (DE: Funkschau 1961 Heft 21 p543-544, NL:Muiderkring - Jaarboekje 1964-1970)
