• Country
• Sweden

• Manufacturer / Brand
• Svenska Högtalarefabriken (Sinus), HIFIac, HIFAB; Vårby, Bureå

• Year
• 1960 ??

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 346804

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Metal case

• from Radiomuseum.org

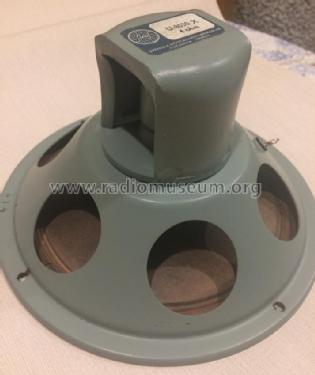

• Model: Sinus Högtalarelement U-8030 X - Svenska Högtalarefabriken

• Shape
• Chassis only or for «building in»

• Notes

• Voice coil

  • Maximum power, Watt: 12 (1971, 1972, 1973).
  • Impedance, Ohm: 4, 8, 16.

  Diaphragm

  • Resonance frequency, Hz: 38 (1971, 1972, 1973).
  • Frequency range, Hz: 30 – 16 000 (1971, 1972, 1973).

  Mechanical data

  • Mounting hole diameter, mm: 175 (1971, 1972, 1973).
  • Total depth, mm: 118 (1971, 1972, 1973).

• Mentioned in
• -- Original prospect or advert (Muiderkring - Jaarboekje 1971, 1972, 1973)

• Author
• Model page created by Mandrigin Sergey. See "Data change" for further contributors.
