• Country
• Germany

• Manufacturer / Brand
• Swing Electroimpex GmbH, Frankfurt

• Year
• 1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 208791

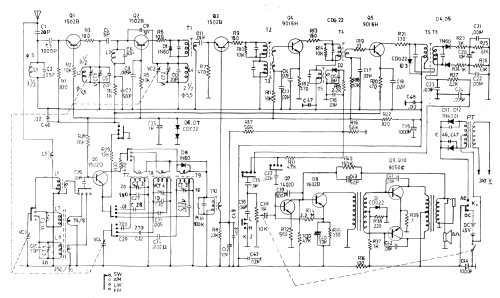

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 240/ 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Power out
• 0.7 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Calypso W-9380 - Swing Electroimpex GmbH,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 8.5 x 5.5 x 2.5 inch / 216 x 140 x 64 mm

• Notes
• Calypso W-9380 Kofferradio mit Ohrhörer, 11 Dioden.

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.
