Commander II

Commander II ; Swing Interlectronic (ID = 2259421) Radio Commander II ; Swing Interlectronic (ID = 2259431) Radio
Commander II ; Swing Interlectronic (ID = 2259430) Radio Commander II ; Swing Interlectronic (ID = 2259417) Radio
Commander II ; Swing Interlectronic (ID = 2259418) Radio Commander II ; Swing Interlectronic (ID = 2259419) Radio

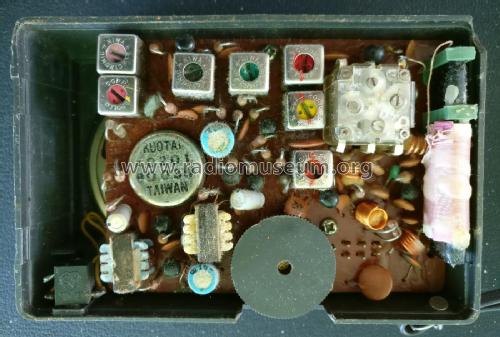

Commander II ; Swing Interlectronic (ID = 2259424) Radio Commander II ; Swing Interlectronic (ID = 2259426) Radio
Commander II ; Swing Interlectronic (ID = 2259428) Radio Commander II ; Swing Interlectronic (ID = 642626) Radio
Use red slider bar for more.

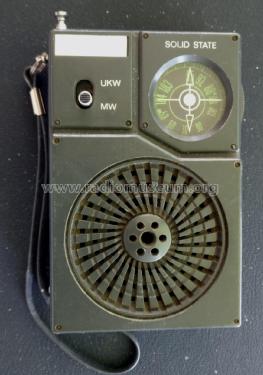

Commander II ; Swing Interlectronic (ID = 2259421) Radio
Swing Interlectronic: Commander II [Radio] ID = 2259421 1400x1990
Select picture or schematic to display from thumbnails on the right and click for download.
For model Commander II, Swing Interlectronic Ltd., Hongkong:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hong Kong
Manufacturer / Brand:  Swing Interlectronic Ltd., Hongkong
Year: 1978/1979 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Commander II - Swing Interlectronic Ltd.,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 76 x 120 x 38 mm / 3 x 4.7 x 1.5 inch
Net weight (2.2 lb = 1 kg) 0.250 kg / 0 lb 8.8 oz (0.551 lb)

Model page created by Eckhard Wegner. See "Data change" for further contributors.



All listed radios etc. from Swing Interlectronic Ltd., Hongkong
Here you find 136 models, 128 with images and 15 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
