• Year
  • 1975 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 250220

 Technical Specifications

  • Number of Transistors
  • 5
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 6LR61: 1 x 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.8 cm = 2.3 inch
  • Power out
  • 0.2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

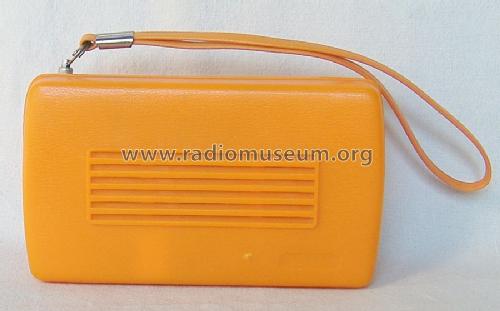

  • Model: Hellas / 6 Solid State - Swops Electronics Co., Ltd.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 112 x 70 x 34 mm / 4.4 x 2.8 x 1.3 inch
  • Notes
  • Kleines AM Taschenradio nur MW, mit Kunststoff Trageschlaufe, ohne Ohrhörerbuchse, Rundskala mit Lupeneffekt auf Frontseite.

  • Net weight (2.2 lb = 1 kg)
  • 0.160 kg / 0 lb 5.6 oz (0.352 lb)
  • Author
  • Model page created by Holger Struthoff. See "Data change" for further contributors.
