• Country
• United States of America (USA)

• Manufacturer / Brand
• Sylvania (Hygrade, GTE, Nilco); Emporium (PA)

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62459

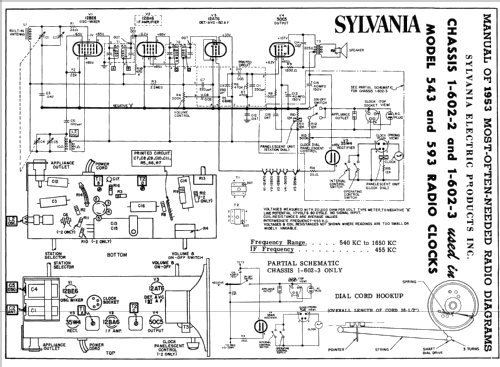

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 593 Ch= 1-602-3 - Sylvania Hygrade, GTE, Nilco;

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes
• Sams photofact, set 225, folder 18, date 12-53, features the Sylvania models 543 and 593 as the same schematic.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 13, 1953

• Mentioned in
• Rider's Perpetual, Volume 23 (last) = covering up to 1954 (-)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 12-53, Set 225, Folder 18)
