• Year
  • 1953
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 62430

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / 117 AC/DC; (75; 7,5;) Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

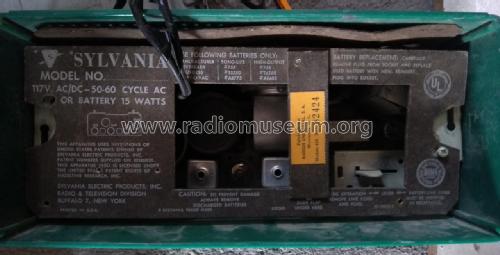

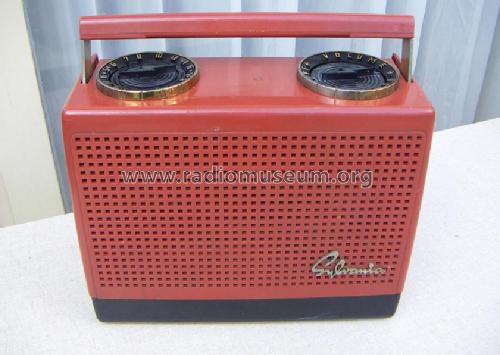

  • Model: 433 Ch= 1-604-1 - Sylvania Hygrade, GTE, Nilco;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 250 x 210 x 110 mm / 9.8 x 8.3 x 4.3 inch
  • Notes
  • Selenium Rectifier
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 13, 1953
