• Country
• United States of America (USA)

• Manufacturer / Brand
• Sylvania (Hygrade, GTE, Nilco); Emporium (PA)

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 136807

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1U4 1U5 3V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 1.5 & 67.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

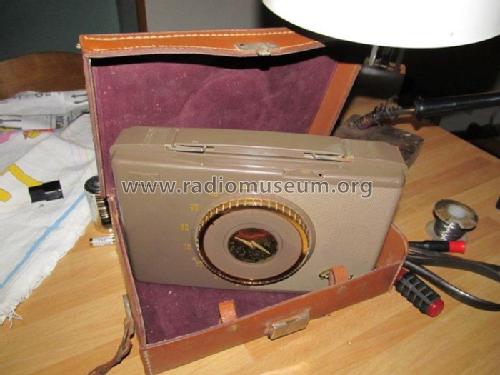

• Model: 454BR Ch= 1-606-1 - Sylvania Hygrade, GTE, Nilco;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes
• Sams photofact, set 247, folder 12, date 8-54, features the Sylvania models 454BR, 454GR, 454H and 454RE as the same schematic. The difference is the color.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 247 folder 12 date 8-54)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
