• Country
• United States of America (USA)

• Manufacturer / Brand
• Sylvania (Hygrade, GTE, Nilco); Emporium (PA)

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78895

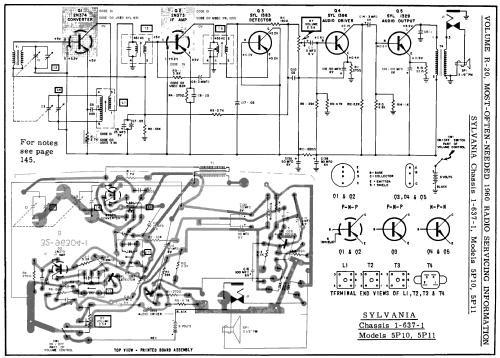

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: T-5 5P10 - Sylvania Hygrade, GTE, Nilco;

• Notes
• At some stage, the grille in the model shown has been painted red, whereas it should be the same cream colour as the rest of the plastic cabinet.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 20, 1960

• Author
• Model page created by Trev Levick. See "Data change" for further contributors.
