• Country
• United States of America (USA)

• Manufacturer / Brand
• Sylvania (Hygrade, GTE, Nilco); Emporium (PA)

• Year
• 1961 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 136804

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

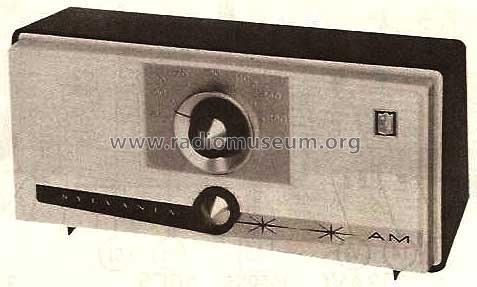

• Model: 5T17E Ch= 676-1 - Sylvania Hygrade, GTE, Nilco;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• Sams photofact, set 557, folder 13, date 12-61, features the Sylvania models 5T17E and 5T17T as the same schematic.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 557 folder 13 date 12-61)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
