• Year
  • 1966 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 96597

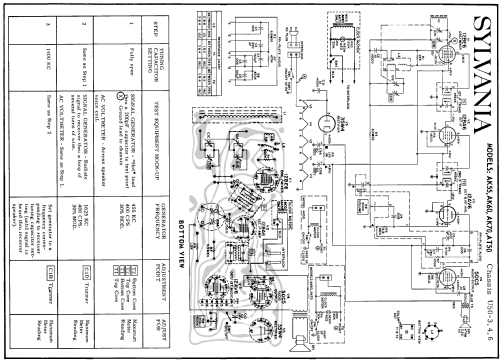

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 105 to 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: AK60WH Ch= U50-3 - Sylvania Hygrade, GTE, Nilco;
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 10.75 x 6.5 x 4.25 inch / 273 x 165 x 108 mm
  • Notes
  • The Sylvania AK60WH is an AC operated 5 tube BC band clock radio.  The BC band range is 540 to 1600 kHz.  Has built-in loop stick antenna. Cabinet color is Off White.

    The following models use the same schematic and cabinet but have different cabinet colors:

    Model Number Cabinet Color
    AK60WH Off White
    AK60GY Green Gray and Off White
    AK60BL Blue and Off White

    Other used Chassis: U50-4, -6

  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 27, 1967-69 (last vol.)
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
