• Year
  • 1967
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 120738

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 80 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

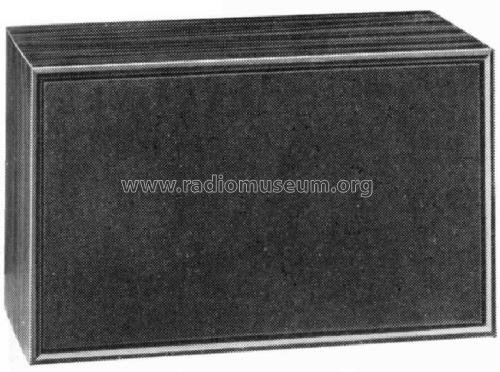

  • Model: AS 12 W-1 - Sylvania Hygrade, GTE, Nilco;
  • Dimensions (WHD)
  • 660 x 394 x 313 mm / 26 x 15.5 x 12.3 inch
  • Notes
  • Three-way speaker 80W (I.H.F.), 8Ω.
    Woofer 305mm Ø, midrange 102mm Ø, tweeter 25mm Ø.
    Frequency response 20Hz-25kHz ±6dB.
    Finish american walnut.
    Price per pair!
  • Net weight (2.2 lb = 1 kg)
  • 20 kg / 44 lb 0.8 oz (44.053 lb)
  • Price in first year of sale
  • 1,500.00 DM
  • Mentioned in
  • High Fidelity Jahrbuch 1967/68
  • Author
  • Model page created by Georg Richter. See "Data change" for further contributors.
