• Year
  • 1974 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 193710

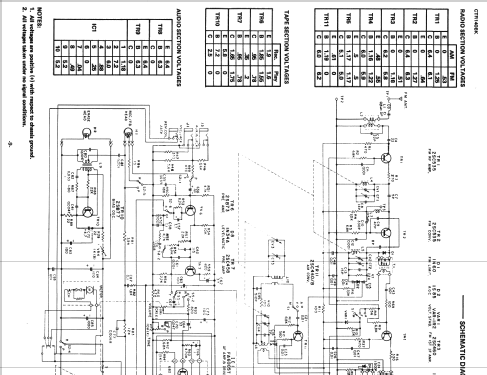

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 11
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)     6 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Tape Recorder
  • Power type and voltage
  • Line / Batteries (any type) / 117 / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: CTR140BK - Sylvania Hygrade, GTE, Nilco;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by Jose Casas-Avalos. See "Data change" for further contributors.
