• Country
• Spain

• Manufacturer / Brand
• Sylvania International; Silvergold; CEHASA; CGTESA; Madrid

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 141776

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 6 x 1,5 . Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

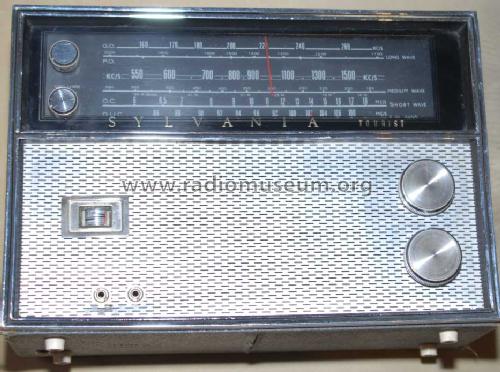

• Model: Tourist T3AF1 - Sylvania International;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 295 x 200 x 115 mm / 11.6 x 7.9 x 4.5 inch

• Notes
• Elliptical speaker 7" x 4". Export model for Europe (Long wave band and french abbreviations GO, PO, OC).

• Author
• Model page created by Francisco Gallego. See "Data change" for further contributors.

• Other Models

• Here you find 20 models, 3 with images and 19 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
