• Country
• United States of America (USA)

• Manufacturer / Brand
• Sylvania (Hygrade, GTE, Nilco); Emporium (PA)

• Year
• 1969 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 339533

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 120 or D: 6 x 1.5 Volt

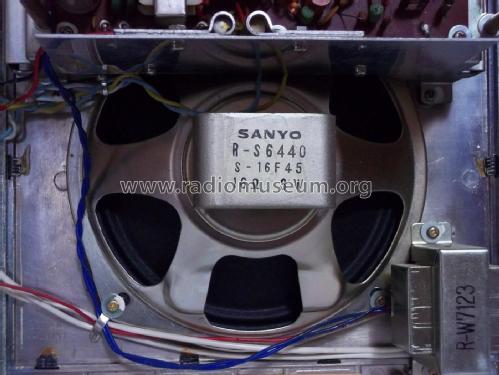

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: TR150BK Ch= 353-1 - Sylvania Hygrade, GTE, Nilco;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 210 x 300.5 x 120 mm / 8.3 x 11.8 x 4.7 inch

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

• Mentioned in
• Sylvania Facts and Features Handbook, 1969, page 105, "TR150BK"

• Literature/Schematics (1)
• Photofact TSM Transistor Radio Series SAMS (TSM-107, Dec. 1969)

• Author
• Model page created by Lester Troeckler. See "Data change" for further contributors.
