TR54 Ch= 328-1

TR54 Ch= 328-1; Sylvania Hygrade, (ID = 201748) Radio
TR54 Ch= 328-1; Sylvania Hygrade, (ID = 1680295) Radio TR54 Ch= 328-1; Sylvania Hygrade, (ID = 262344) Radio
TR54 Ch= 328-1; Sylvania Hygrade, (ID = 262346) Radio TR54 Ch= 328-1; Sylvania Hygrade, (ID = 262348) Radio
TR54 Ch= 328-1; Sylvania Hygrade, (ID = 1680294) Radio
Use red slider bar for more.
TR54 Ch= 328-1; Sylvania Hygrade, (ID = 1680295) Radio

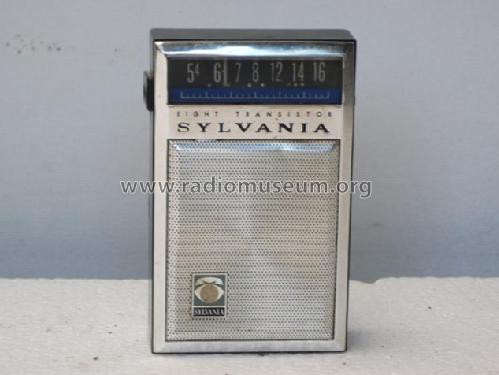

Sylvania Hygrade,: TR54 Ch= 328-1 [Radio] ID = 1680295 634x476
Select picture or schematic to display from thumbnails on the right and click for download.
For model TR54 Ch= 328-1, Sylvania (Hygrade, GTE, Nilco); Emporium (PA)

Country:  United States of America (USA)
Manufacturer / Brand:  Sylvania (Hygrade, GTE, Nilco); Emporium (PA)
Year: 1965 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SA296 2SA296 2SA296 2SB266 2SA269 2SA297 2SB267 2SB267
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.3 inch = 5.8 cm
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: TR54 Ch= 328-1 - Sylvania Hygrade, GTE, Nilco;
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 68 x 107 x 32 mm / 2.7 x 4.2 x 1.3 inch
Notes Color black with metal front. Looks similar to TR25. Only visible difference: the TR25 displays at the dial in big letters "AM" and "KC", which are missing at the TR54 dial.
Circuit diagram reference Beitman Radio Diagrams Vol. 26, 1966

Model page created by Egon Penker. See "Data change" for further contributors.
