• Year
  • 1933 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 266946

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 40 to 50 Hz, 110; 130; 220; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

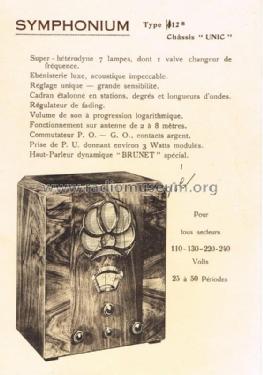

  • Model: 512B - Symphonium marque; Marseille
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Notes
  • Radio equipée du chassis Unic (Ribet-Desjardins) série 12.
    Châssis métallique soudé électriquement.
    Prises antenne et terre.
    Prise PU sur le châssis.
    Commutateur à contacts d'argent
    HP électro-dynamique 2500 ohms "BRUNET".

    Aussi disponible avec châssis pour secteur 25 périodes.

  • Author
  • Model page created by Michel Guigon. See "Data change" for further contributors.
