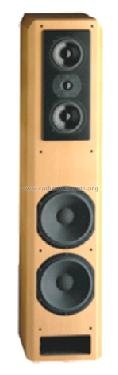

Transmission-Line Box Criterion TAL 140

T+A Elektroakustik; Herford

  • Year
  • 1998 ??
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 239973

 Technical Specifications

  • Wave bands
  • - without
  • Loudspeaker
  • 5 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Transmission-Line Box Criterion TAL 140 - T+A Elektroakustik; Herford
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 270 x 1200 x 400 mm / 10.6 x 47.2 x 15.7 inch
  • Notes
  • Die CRITERION TAL 140 ist eine Transmission-Line Box aus der CRITERION-Serie, besonderes Merkmal ist die auf einer entkoppelten Schallwand angebrachte Mittel-Hochton-Einheit mit zwei MT und einem HT in d’Appolito-Anordnung. Die drei Frequenzbereiche sind  +/- 2 dB regelbar ausgeführt.

    Technische Daten:
    Bauart: 3 -Wege TML-Standbox
    Nennbelastbarkeit: 160 W
    Musikbelastbarkeit: 220 W
    Impedanz: 4 Ω
    Übertragungsbereich: 30 … 30.000 Hz
    Leistungsbedarf: 2,1 W bei 90 dB/ 1m

    Bestückung:
    Tiefton: 2x 220 mm, Langhub-Chassis
    Mittelton: 2x 130 mm Konus-LS
    Hochton: 1x 26 mm  Gewebekalotte
    Bi-Amping: ja
    Bi-Wiring: ja
    Frequenzweiche: FSR
    Trennfrequenz:  200 / 2.500 Hz

    Gehäuse: 50 mm Laminat
    Farben: Schleiflack schwarz, silber oder weiß, Erle natur, Buche natur
    Preis in 2004: 2800 €/ Paar

  • Net weight (2.2 lb = 1 kg)
  • 46 kg / 101 lb 5.1 oz (101.322 lb)
  • Price in first year of sale
  • 1,400.00 €
  • Mentioned in
  • T+A Produktarchiv; stereoplay 11/1998 Test
  • Author
  • Model page created by Eberhard Fuchs. See "Data change" for further contributors.
