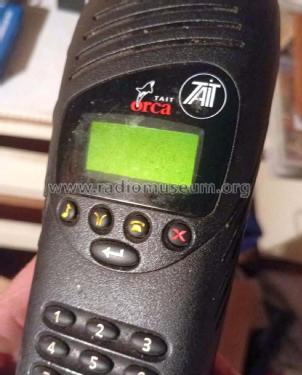

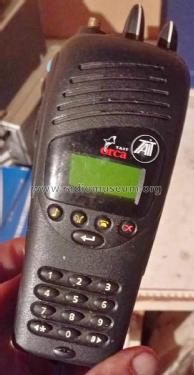

Orca Excel Hand Portable Radio

Tait Electronics Ltd.; Christchurch

Data
Forum
Pictures
Collections

  • Year
  • 1998 ??
  • Category
  • Commercial Transmitter & Receiver (TRX not Amateur)
  • Radiomuseum.org ID
  • 360886

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Transceiver
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Dry Batteries / 7.5 Volt
  • Loudspeaker
  • -Loudspeaker incorporated, but system not known.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Orca Excel Hand Portable Radio - Tait Electronics Ltd.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 62 x 153 x 44 mm / 2.4 x 6 x 1.7 inch
  • Notes

  • Orca Excel Hand Portable Radio

    Specifications:

    • Size L x W x H; 44 x 62 x 153 (including 1100 mAh NiCd battery)
    • Battery Voltage; 7.5V nominal
    • Transmitter Power; 136-174 MHz: 5W                                                                                                              174-530 MHz: 4W
    • Audio Power; 0.5W into 16Ω

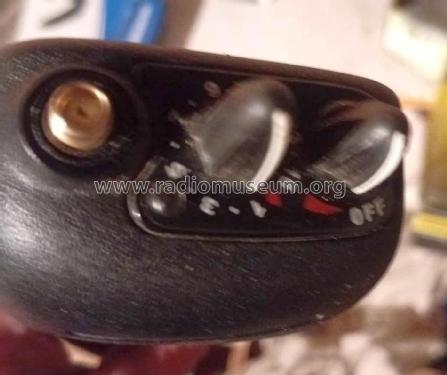

    • Antenna Connector; SMA
    • Typical Weight; 495g (Orca Elan)                                                                                                                520g (Orca Excel)



  • Net weight (2.2 lb = 1 kg)
  • 0.520 kg / 1 lb 2.3 oz (1.145 lb)
  • Mentioned in
  • - - Manufacturers Literature
  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
