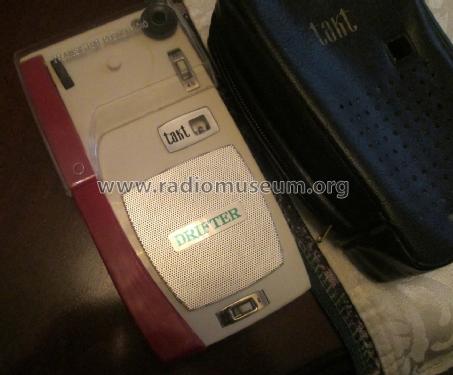

Drifter 6 Transistor Phonoradio TPR-61

Drifter 6 Transistor Phonoradio TPR-61; Takt Denki / Tact (ID = 2003767) Radio
Drifter 6 Transistor Phonoradio TPR-61; Takt Denki / Tact (ID = 1512420) Radio Drifter 6 Transistor Phonoradio TPR-61; Takt Denki / Tact (ID = 1512421) Radio
Drifter 6 Transistor Phonoradio TPR-61; Takt Denki / Tact (ID = 1512422) Radio Drifter 6 Transistor Phonoradio TPR-61; Takt Denki / Tact (ID = 1512423) Radio
Drifter 6 Transistor Phonoradio TPR-61; Takt Denki / Tact (ID = 1512424) Radio Drifter 6 Transistor Phonoradio TPR-61; Takt Denki / Tact (ID = 1512425) Radio
Drifter 6 Transistor Phonoradio TPR-61; Takt Denki / Tact (ID = 1512426) Radio Drifter 6 Transistor Phonoradio TPR-61; Takt Denki / Tact (ID = 1512427) Radio
Drifter 6 Transistor Phonoradio TPR-61; Takt Denki / Tact (ID = 1512429) Radio Drifter 6 Transistor Phonoradio TPR-61; Takt Denki / Tact (ID = 1512430) Radio
Use red slider bar for more.
Drifter 6 Transistor Phonoradio TPR-61; Takt Denki / Tact (ID = 1512420) Radio
Takt Denki / Tact: Drifter 6 Transistor Phonoradio TPR-61 [Radio] ID = 1512420 933x557
Select picture or schematic to display from thumbnails on the right and click for download.
For model Drifter 6 Transistor Phonoradio TPR-61, Takt Denki / Tact Denki Co. Ltd.; (where?):
By Courtesy Of EBAY User: akacuck

Country:  Japan
Manufacturer / Brand:  Takt Denki / Tact Denki Co. Ltd.; (where?)
Year: 1961/1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2SA106 2SA107 2SA137 2SB169 2SB263 2SB263
schematic requested
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details Record Player (not changer)
Power type and voltage Dry Batteries / C: 3 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
Power out
from Radiomuseum.org Model: Drifter 6 Transistor Phonoradio TPR-61 - Takt Denki / Tact Denki Co.
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 95 x 45 x 180 mm / 3.7 x 1.8 x 7.1 inch
Notes

Takt Denki AM Transistor Phonoradio Model Drifter TPR-61. 2-speed record player with 33 and 45 rpm.

Distributed exclusively by Ranchero Sales Co. California.
Made in Japan.

See also model Tact Denki TPR-61.

Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.
