Baandopptaker TB15SL

Baandopptaker TB15SL; Tandberg Radio; Oslo (ID = 1624575) R-Player

Baandopptaker TB15SL; Tandberg Radio; Oslo (ID = 1624576) R-Player
Baandopptaker TB15SL; Tandberg Radio; Oslo (ID = 1829189) R-Player
Use red slider bar for more.
Baandopptaker TB15SL; Tandberg Radio; Oslo (ID = 1829189) R-Player

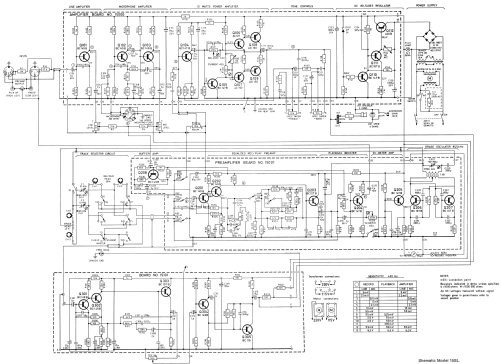

Tandberg Radio; Oslo: Baandopptaker TB15SL [R-Player] ID = 1829189 1400x992
Select picture or schematic to display from thumbnails on the right and click for download.
For model Baandopptaker TB15SL, Tandberg Radio; Oslo

Country:  Norway
Manufacturer / Brand:  Tandberg Radio; Oslo
Year: 1970 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 25:
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 115/230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 10 W (unknown quality)
from Radiomuseum.org Model: Baandopptaker TB15SL - Tandberg Radio; Oslo
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 390 x 300 x 170 mm / 15.4 x 11.8 x 6.7 inch
Notes

Ausführliche Service-Unterlagen bei TB14-21.

Net weight (2.2 lb = 1 kg) 8.7 kg / 19 lb 2.6 oz (19.163 lb)
Mentioned in -- Original prospect or advert

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
