FM/AM Stereo Receiver TR-2075 Mk II

FM/AM Stereo Receiver TR-2075 Mk II; Tandberg Radio; Oslo (ID = 1654373) Radio

FM/AM Stereo Receiver TR-2075 Mk II; Tandberg Radio; Oslo (ID = 1654374) Radio

FM/AM Stereo Receiver TR-2075 Mk II; Tandberg Radio; Oslo (ID = 1654376) Radio

FM/AM Stereo Receiver TR-2075 Mk II; Tandberg Radio; Oslo (ID = 1654378) Radio

FM/AM Stereo Receiver TR-2075 Mk II; Tandberg Radio; Oslo (ID = 1654379) Radio

FM/AM Stereo Receiver TR-2075 Mk II; Tandberg Radio; Oslo (ID = 1654380) Radio

FM/AM Stereo Receiver TR-2075 Mk II; Tandberg Radio; Oslo (ID = 1654381) Radio

FM/AM Stereo Receiver TR-2075 Mk II; Tandberg Radio; Oslo (ID = 1654382) Radio

FM/AM Stereo Receiver TR-2075 Mk II; Tandberg Radio; Oslo (ID = 1654487) Radio

FM/AM Stereo Receiver TR-2075 Mk II; Tandberg Radio; Oslo (ID = 1654488) Radio
FM/AM Stereo Receiver TR-2075 Mk II; Tandberg Radio; Oslo (ID = 1338874) Radio FM/AM Stereo Receiver TR-2075 Mk II; Tandberg Radio; Oslo (ID = 1338876) Radio
FM/AM Stereo Receiver TR-2075 Mk II; Tandberg Radio; Oslo (ID = 1338877) Radio FM/AM Stereo Receiver TR-2075 Mk II; Tandberg Radio; Oslo (ID = 1338879) Radio
Use red slider bar for more.
FM/AM Stereo Receiver TR-2075 Mk II; Tandberg Radio; Oslo (ID = 1338874) Radio

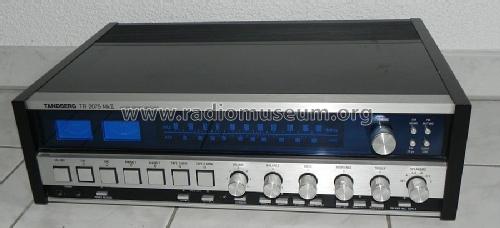

Tandberg Radio; Oslo: FM/AM Stereo Receiver TR-2075 Mk II [Radio] ID = 1338874 900x411

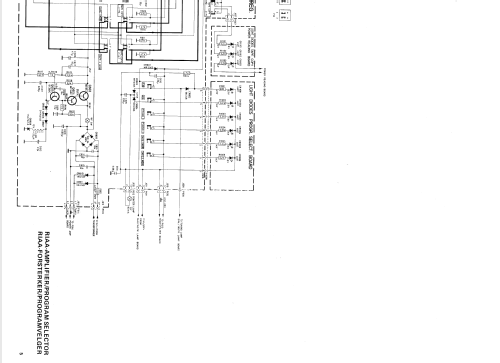

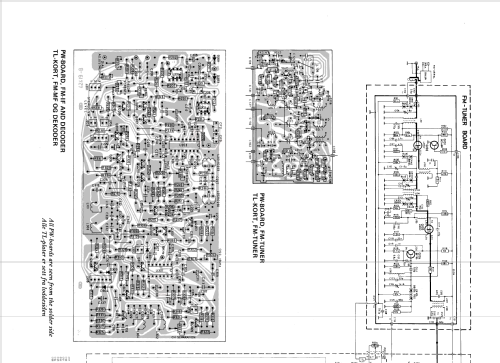

Select picture or schematic to display from thumbnails on the right and click for download.
For model FM/AM Stereo Receiver TR-2075 Mk II, Tandberg Radio; Oslo

Country:  Norway
Manufacturer / Brand:  Tandberg Radio; Oslo
Year: 1977 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 88:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: FM/AM Stereo Receiver TR-2075 Mk II - Tandberg Radio; Oslo
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 515 x 153 x 353 mm / 20.3 x 6 x 13.9 inch
Notes Tandberg TR 2075 MK II, FM/AM Stereo Receiver;
Tuning and signal meter, amplifier: 2 x 125 W sinus 4 ohms.
Compared to TR 2075 enhanced VHF and amplifier circuit & new AM circuit.
Net weight (2.2 lb = 1 kg) 12.5 kg / 27 lb 8.5 oz (27.533 lb)
Collectors' prices
Mentioned in - - Manufacturers Literature (Tandberg Katalog D 1977)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Tandberg Radio; Oslo
Here you find 197 models, 167 with images and 104 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
