Huldra 12 ; Tandberg Radio; Oslo (ID = 1602779) Radio

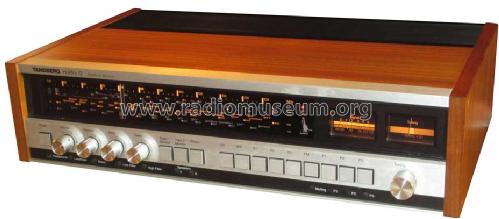

Tandberg Radio; Oslo: Huldra 12 [Radio] ID = 1602779 930x409
Select picture or schematic to display from thumbnails on the right and click for download.
For model Huldra 12, Tandberg Radio; Oslo

Country:  Norway
Manufacturer / Brand:  Tandberg Radio; Oslo
Year: 1978–1983 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present. 40822 BF195 BF254 BF255 BF506 BC547 BC548 BC549 BC557 BC558 BD165 BD418 BD809 BD810 MPS-U06 MPS-U56 2SC1583 µA703 TDA1047 MC1310 MC14016 1N4148 1N4742 1N5245 AA119 BA219 BB104 BB204 BA219 BA243 MBD102 B60C800 B80C3200/2200
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Huldra 12 - Tandberg Radio; Oslo
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 555 x 145 x 370 mm / 21.9 x 5.7 x 14.6 inch
Notes Ausgangsleistung: 2× 32 W (Sinus) an 4 Ω. 3 KW-Bänder: Kb1: 20–30 MHz, Kb2: 10–20 MHz, Kb3: 3,3–10 MHz.
Net weight (2.2 lb = 1 kg) 8.7 kg / 19 lb 2.6 oz (19.163 lb)
Price in first year of sale 4'500.00 NKr.

Model page created by Ernst Rykkje. See "Data change" for further contributors.



All listed radios etc. from Tandberg Radio; Oslo
Here you find 201 models, 171 with images and 106 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
