Huldra 2 (2B) with ECH3, from nr. 42000

Huldra 2 ; Tandberg Radio; Oslo (ID = 2075107) Radio
Use red slider bar for more.
Huldra 2 ; Tandberg Radio; Oslo (ID = 2075107) Radio

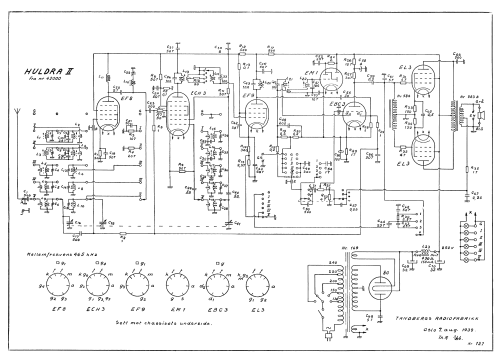

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Norway
Manufacturer / Brand:  Tandberg Radio; Oslo
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EF8 ECH3 EF9 EBC3 EM1 EL3 EL3 80
Main principle Superhet with RF-stage; ZF/IF 465 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 130; 150; 200; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Huldra 2 [with ECH3, from nr. 42000] - Tandberg Radio; Oslo
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Wavebands: LW 145 - 370 kHz, MW 500 - 1550 kHz, Trawlerband 1550 - 4500 kHz, SW1 4.5 - 12 MHz, SW2 12 - 13 MHz.

See also Huldra 2A with EK3 instead of ECH3.

Mentioned in -- Original-techn. papers.

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
