Programable FM Tuner TPT 3001

Programable FM Tuner TPT 3001; Tandberg Radio; Oslo (ID = 2444903) Radio Programable FM Tuner TPT 3001; Tandberg Radio; Oslo (ID = 902412) Radio
Use red slider bar for more.
Programable FM Tuner TPT 3001; Tandberg Radio; Oslo (ID = 2444903) Radio

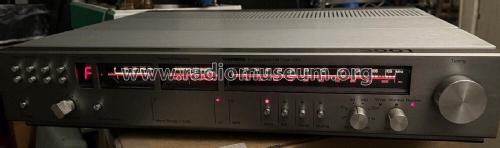

Tandberg Radio; Oslo: Programable FM Tuner TPT 3001 [Radio] ID = 2444903 1400x461
Select picture or schematic to display from thumbnails on the right and click for download.
For model Programable FM Tuner TPT 3001, Tandberg Radio; Oslo:
Bild aus Original Messeprospekt HIFI-Düsseldorf 1980.

Country:  Norway
Manufacturer / Brand:  Tandberg Radio; Oslo
Year: 1980/1981 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 115; 230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Programable FM Tuner TPT 3001 - Tandberg Radio; Oslo
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 435 x 83 x 350 mm / 17.1 x 3.3 x 13.8 inch
Notes Tandberg TPT 3001, Programable FM Tuner;
8 presets, two instruments, silver cabinet, RCA terminals, variable output, 25/50/75 µS switchable de-emphasis, IEC antenna in.
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 9'000.00 NKr
Mentioned in The Norwegian Historical Radio Society
Literature/Schematics (1) -- Original prospect or advert (Advert., Discoteca Hi-Fi, May 1981 - Italy)

Model page created by Ernst Rykkje. See "Data change" for further contributors.



All listed radios etc. from Tandberg Radio; Oslo
Here you find 201 models, 171 with images and 106 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
