• Country
• Norway

• Manufacturer / Brand
• Tandberg Radio; Oslo

• Year
• 1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 124876

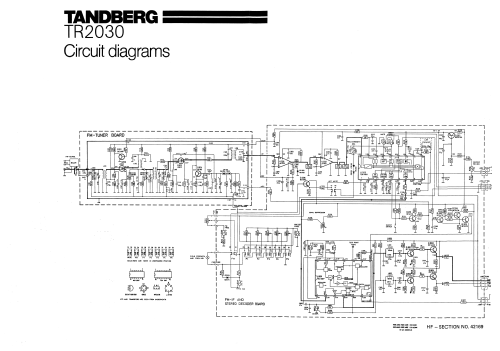

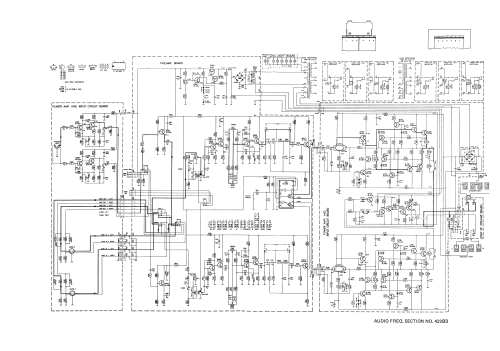

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 63

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 120; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

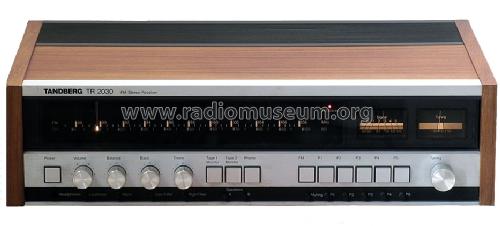

• Model: TR-2030 - Tandberg Radio; Oslo

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 515 x 145 x 320 mm / 20.3 x 5.7 x 12.6 inch

• Notes
• Stereo FM-Receiver mit 2×30 W (FTC), 2× 42 W/8 Ω (DIN 45500). Phasenlinearer Keramikfilter im ZF-Verstärker für ausgezeichnete Trennschärfe. PLL-Decoder. 5 UKW-Programm-Vorwahltasten. 2 Messinstrumente. Anschlüsse für zwei Tonbandgeräte, beide mit Hinterbandkontrolle. Elektronische Endstufensicherung. Kondensatorlose voll komplementäre Endstufen.
  Aluminiumfront, Palisandergehäuse oder wahlweise in Nussbaum natur, Schleiflack weiß und anthrazit.
  Variante: TR-2030L mit LW (150–268 kHz) und MW (518–1600 kHz).

• Net weight (2.2 lb = 1 kg)
• 8.3 kg / 18 lb 4.5 oz (18.282 lb)

• Price in first year of sale
• 3,499.00 NKr

• Mentioned in
• The Norwegian Historical Radio Society

• Author
• Model page created by Ernst Rykkje. See "Data change" for further contributors.
