Retro-Radio PR-288

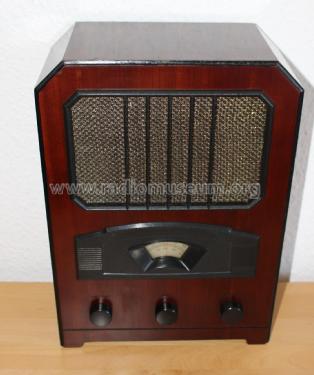

Retro-Radio PR-288; Tatung Co.; Taipei (ID = 2499278) Radio Retro-Radio PR-288; Tatung Co.; Taipei (ID = 2499277) Radio

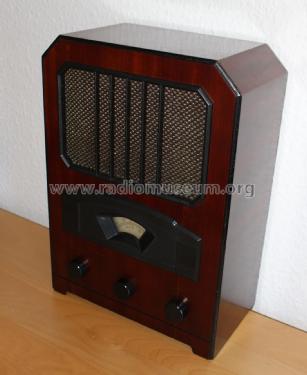

Retro-Radio PR-288; Tatung Co.; Taipei (ID = 2499279) Radio Retro-Radio PR-288; Tatung Co.; Taipei (ID = 2499280) Radio
Retro-Radio PR-288; Tatung Co.; Taipei (ID = 2499281) Radio Retro-Radio PR-288; Tatung Co.; Taipei (ID = 2499283) Radio
Retro-Radio PR-288; Tatung Co.; Taipei (ID = 2499284) Radio
Use red slider bar for more.
Retro-Radio PR-288; Tatung Co.; Taipei (ID = 2499278) Radio
Tatung Co.; Taipei: Retro-Radio PR-288 [Radio] ID = 2499278 1400x1829
Select picture or schematic to display from thumbnails on the right and click for download.
For model Retro-Radio PR-288, Tatung Co.; Taipei:
eigene Sammlung

Country:  Taiwan (Republic of China)
Manufacturer / Brand:  Tatung Co.; Taipei
Year: 1983 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 1 AF stage(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5.25 inch = 13.3 cm
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Retro-Radio PR-288 - Tatung Co.; Taipei
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 270 x 380 x 145 mm / 10.6 x 15 x 5.7 inch
Notes

Der Stil des Gehäuses dieses Retro-Radios PR-288 ist einem Grabstein (Tombstone) nachempfunden. Annähernd gleiche Platine wie im Tatung Wall Radio PR-200M. 1 IC zur NF Verstärkung.

Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)

Model page created by Lothar Oelkrug. See "Data change" for further contributors.
