AF/RF Signal Generator 68A Late model

AF/RF Signal Generator 68A; Taylor Electrical (ID = 1053574) Equipment

AF/RF Signal Generator 68A; Taylor Electrical (ID = 1053576) Equipment
AF/RF Signal Generator 68A; Taylor Electrical (ID = 851034) Equipment AF/RF Signal Generator 68A; Taylor Electrical (ID = 851035) Equipment
AF/RF Signal Generator 68A; Taylor Electrical (ID = 851036) Equipment
Use red slider bar for more.
AF/RF Signal Generator 68A; Taylor Electrical (ID = 851034) Equipment
Taylor Electrical: AF/RF Signal Generator 68A [Equipment] ID = 851034 840x651
Select picture or schematic to display from thumbnails on the right and click for download.
For model AF/RF Signal Generator 68A Late model, Taylor Electrical Instruments Ltd.; England:
Note the frequency coverage to 240MHz in contrast to 220MHz for the early model.

Country:  Great Britain (UK)
Manufacturer / Brand:  Taylor Electrical Instruments Ltd.; England
Year: 1959 ? Category: Service- or Lab Equipment
Valves / Tubes 2: 12AT7 12AU7
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: AF/RF Signal Generator 68A [Late model] - Taylor Electrical Instruments
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 330 x 240 x 190 mm / 13 x 9.4 x 7.5 inch
Notes Ranges: 1) 110-240MHz, 2) 55-110MHz, 3) 30-55MHz, 4) 10-30MHz, 5) 3-10MHz, 6) 1-3MHz, 7) 300-1000kHz, 8) 100-300kHz
Net weight (2.2 lb = 1 kg) 18 lb (18 lb 0 oz) / 8.172 kg
Price in first year of sale 28.00 GBP
Source of data - - Data from my own collection

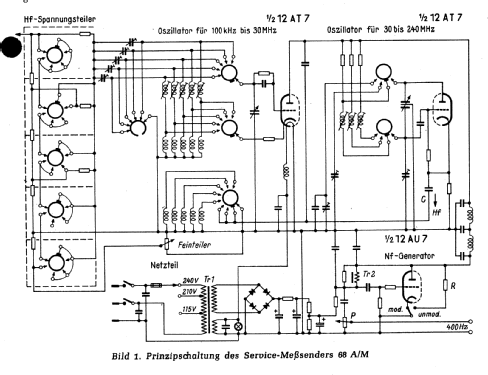

Literature/Schematics (1) Service Engineer, July 1959, pages 38-39.

Model page created by Gwyn Griffiths. See "Data change" for further contributors.
